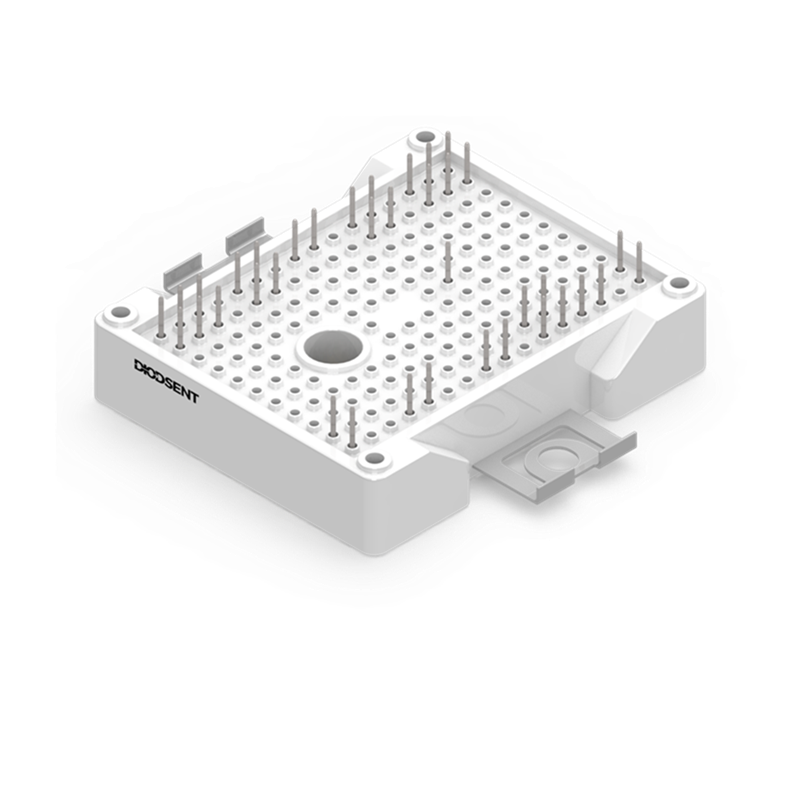

DPM-E2B 是一款 1200V/100A SiC MOSFET Four-Pack 功率模块，适用于高效率电力转换、DC/DC 转换器、电动汽车充电及 UPS 等应用。
向下滑动查看更多 ↓
规格

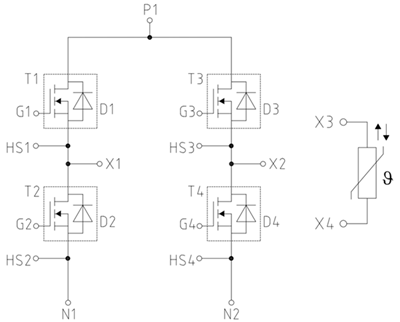

- Four PACK with NTC
- Silicon Carbide MOSFET
- Vds=1200V
- Id=100 A
- Ron typical 8 mohm
- Use high performance Al2O3 substrate
- PressFit contact design
- Tvj=175℃
Product validation
• Qualified for industrial applications according to the relevant tests of IEC 60747, 60749 and 60068
* Contact us for the datasheet.
• Electrical features
- VDSS = 1200 V
- IDN = 100 A / IDRM = 200 A
- Low inductive design
- Low switching losses
- High current density
• Mechanical features
- PressFIT contact technology
- Integrated NTC temperature sensor
- Rugged mounting due to integrated mounting clamps
- Pre-applied thermal interface material
Potential Applications
•High-Efficiency Power Conversion
•DC/DC Converters
•EV Charging Systems
•UPS (Uninterruptible Power Supply) Systems
